ELECTRONIC COIN SELECTOR CARWASH

BAY SELF SERVICE - VACUUM

(PULSES / CCTALK / MDB) SERIES M/P MICROHARD

ELECTRONIC COIN SELECTOR CARWASH

BAY SELF SERVICE - VACUUM (PULSES / CCTALK / MDB) SERIES M/P MICROHARD



Change Protocol from parallel to ccTalk and vice versa, by yourself.
Optimized costs and stocks.
Tropicalized electronic board.

Acceptance:
• Up to 16 different unique coins or tokens, ranging from 16mm to 32mm in diameter, and from 1 to 3.2mm thickness


Security:
• active: with double optical sensors controlling coin flow/direction
• passive: triple security with stainless steel wirecutter, invasive wire control and coin blocking lever.


Sensors:
• 3 pairs of optic sensors for measuring coin diameter and thickness
• inductive analog sensors
• digital output Hall effect sensors for absolute protection against counterfeit coins


Materials:
• main frame: highly durable and highly stable Noril material
• Stainless steel re-enforced Coin chute and sensor section and stainless steel, contrast springs


Speed:
• 3 coins per second


Power supply:
• +12 Vdc and +24 Vdc with standard connectors


Current:
• 30mA (300mA in acceptance)


Output signals:
• NPN open collector (ULN 2003 A) with maximum 500 mA load


Programming:
• Standard PC settings or Self programmable


Assembly angle:
+/- 10° in any direction


Operating temperature:
• from -20 °C to 70 °C

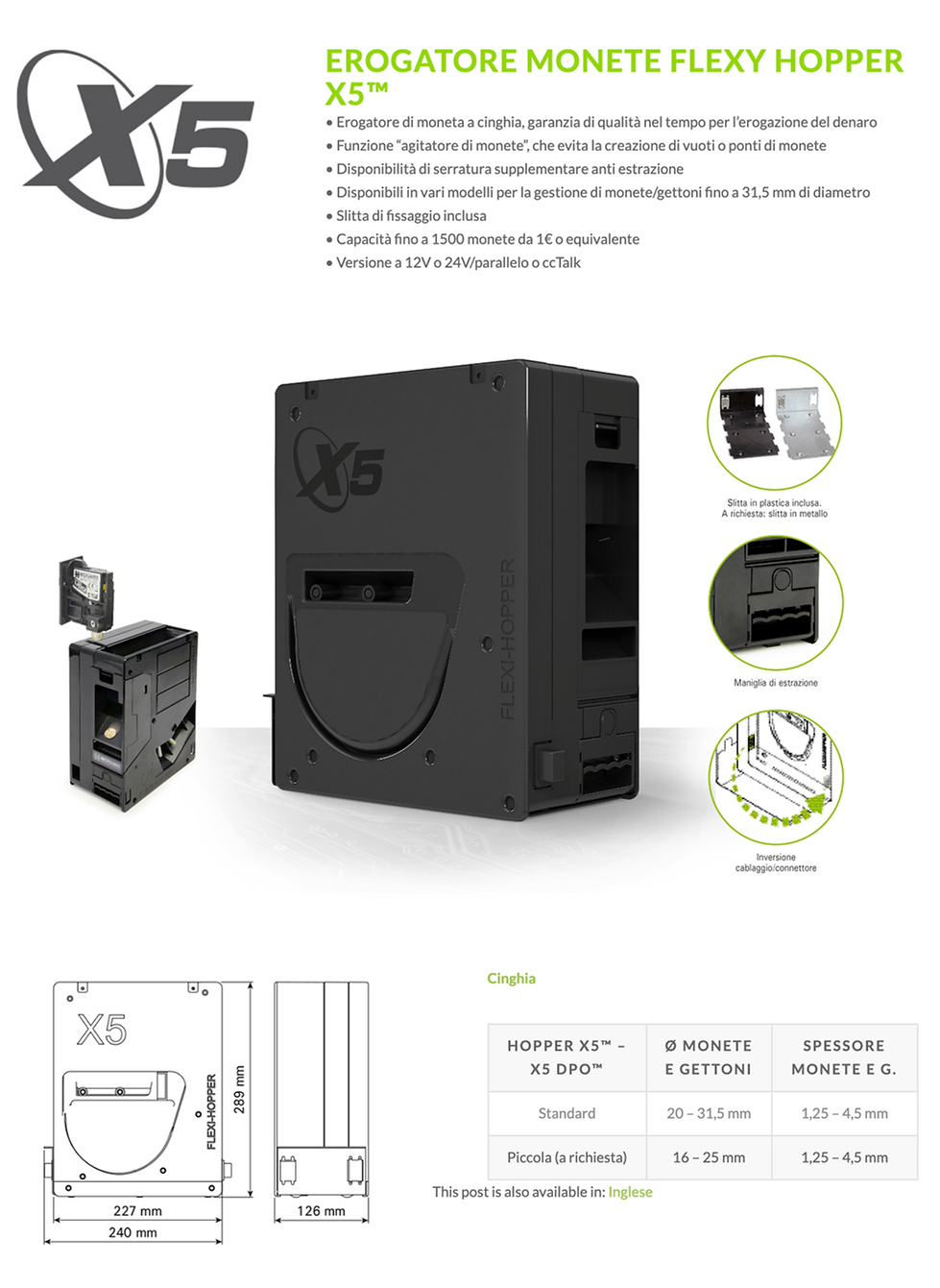

HOPPER X5 MICROHARD TO MAKE COIN DISPENSERS AND MULTIMETER REST FOR PAYMENT TERMINALS PORTAL AND CHANGE POINT CARWASH

HOPPER X5 MICROHARD TO MAKE COIN DISPENSERS AND MULTIMETER REST FOR PAYMENT TERMINALS PORTAL AND CHANGE POINT CARWASH



• Belt driven coin dispenser ensuring long lasting durability for cash handling
• “Internal Stirrer” function prevents gaps and coins bridging/blockages
• Optional Anti-theft lock available
• Different models for coin handling up to 31,5 mm diameter
• Slide included
• Capacity up to n.1500 coins 1€ or equivalent
• Version 12V or 24V, parallel or cctalk

Standard version with Male cinch connector fixed into the hopper and Female cinch connector on the slide

USB version

Version with Male cinch connector fixed into the hopper, Female cinch connector on the slide and interface MH455 with 10PIN connector

Version with Female cinch connector fixed into the hopper, Male cinch connector on the slide and interface MH583 with 10PIN connector
